Model: AR
These units are essential for all sorts of furnishing moving, the ball bearing swivel castors allow light work and transportation of heavy loads in extremely tight spaces. As all wheels are swivel castors, you are able to pivot the item on its own axis.

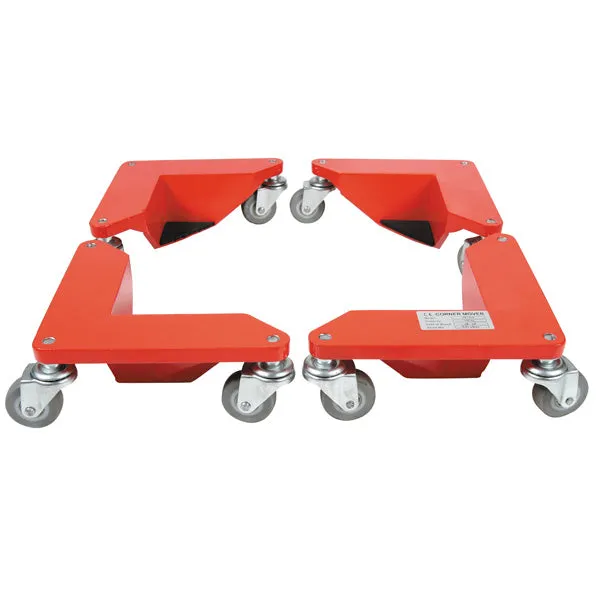

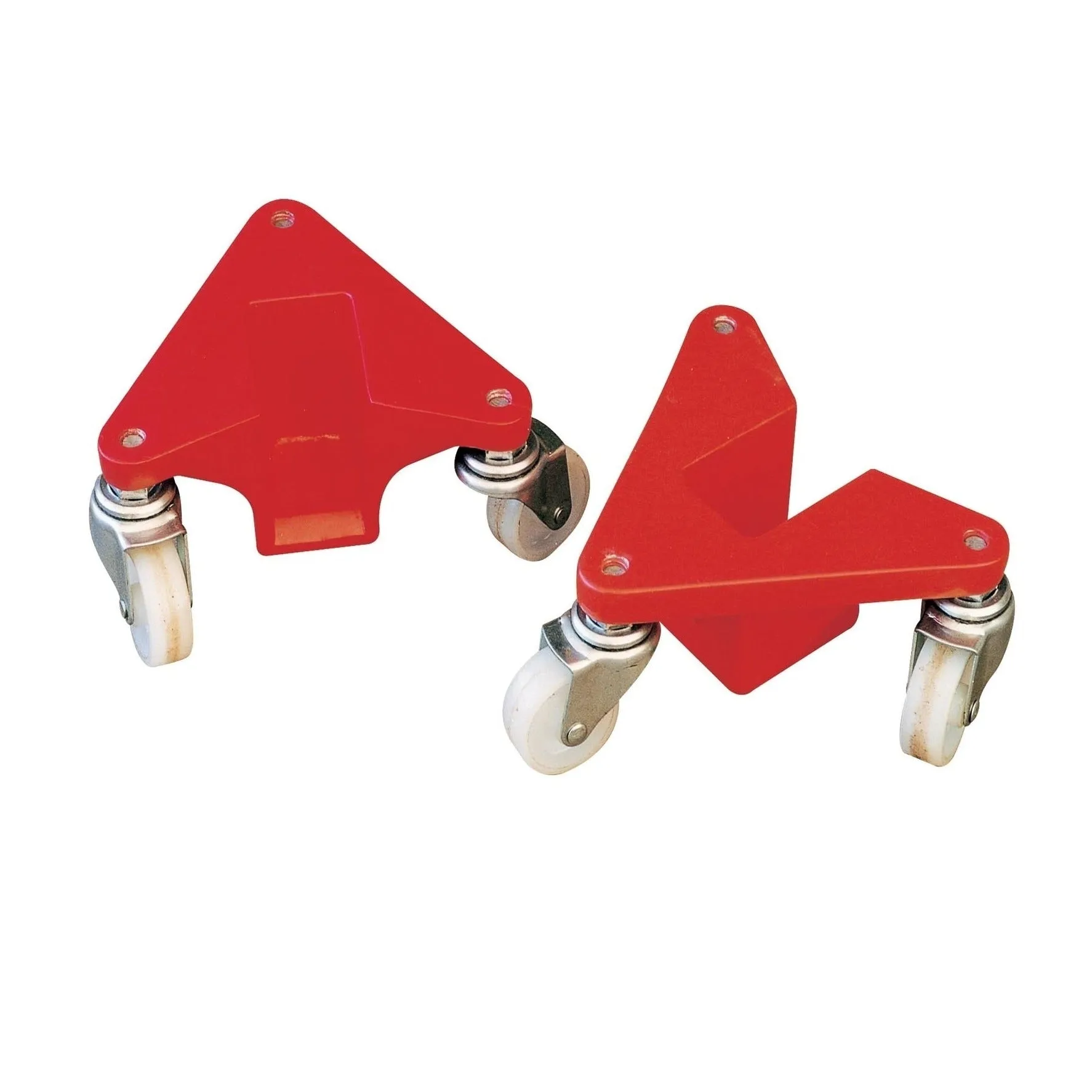

Low level corner bogies, essentially used to move awkward rectangular loads. Load platform covered with ribbed rubber for load protection. AR100A/B are made of casting aluminium, meanwhile the AR150 is made of press steel. Easy position lift one side of load by transport jack and slide in corners, then repeat for other side.
Sold in sets of x4 only.
| AR100A | AR100B | AR150 | |
|
Max. Load Each |
100kg | 100kg | 150kg |
| Overall Size (mm) | 305 x 165 x 85 | 195 x 165 x 85 | 366 x 204 x 85 |
| Castor Diameter (mm) | Ø50 x 20 | Ø50 x 20 | Ø50 x 20 |
Supplied with an E.C Declaration of Conformity.
